MediaWeb PACS: Move, Delete, Lock or Format Annotations

Once shapes (lines, arrows, ellipse, rectangles) have been added, the user is able to move, delete, lock and format.

Move an annotation’s shape

1. Once an annotation is drawn, move the mouse (+ & o) to the drawn shape

2. Click and hold the left muse and drag to new position

3. Unclick the left mouse when in correct position



Delete an annotation

1. Move the mouse to the annotation and click

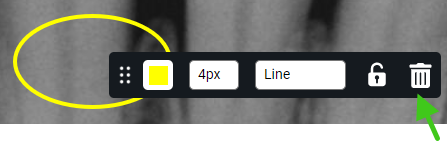

2. Click the Delete icon



Lock an annotation

1. Move the mouse to the annotation and click

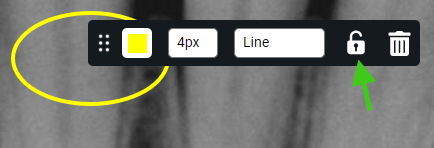

2. Click the Lock icon

3. Repeat to unlock



Format (Colour, font size line width) an annotation

1. Move the mouse to the annotation and click

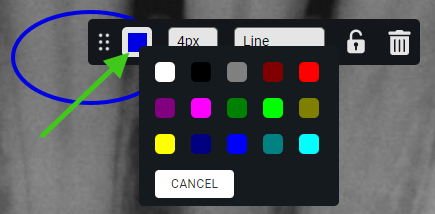

   1. To select colour, click and select from the available colours

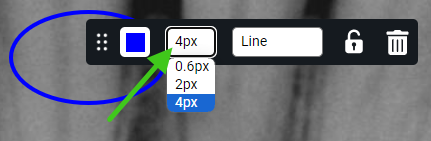

   2. To select font size, click and select from the options in the drop list

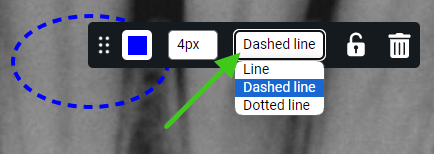

   3. To select line type, click and select from the drop list
