MediaWeb PACS: Image enhancement tools

Follow

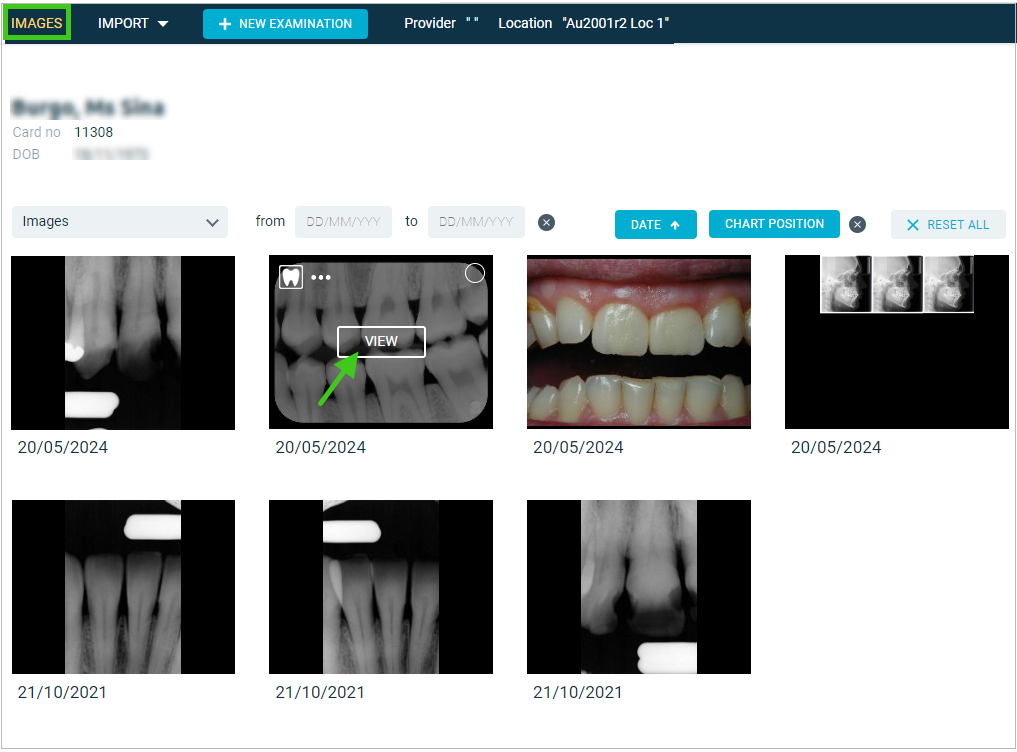

  1. On the IMAGES page:

    1. Hover mouse over image to enable VIEW

    2. Click VIEW

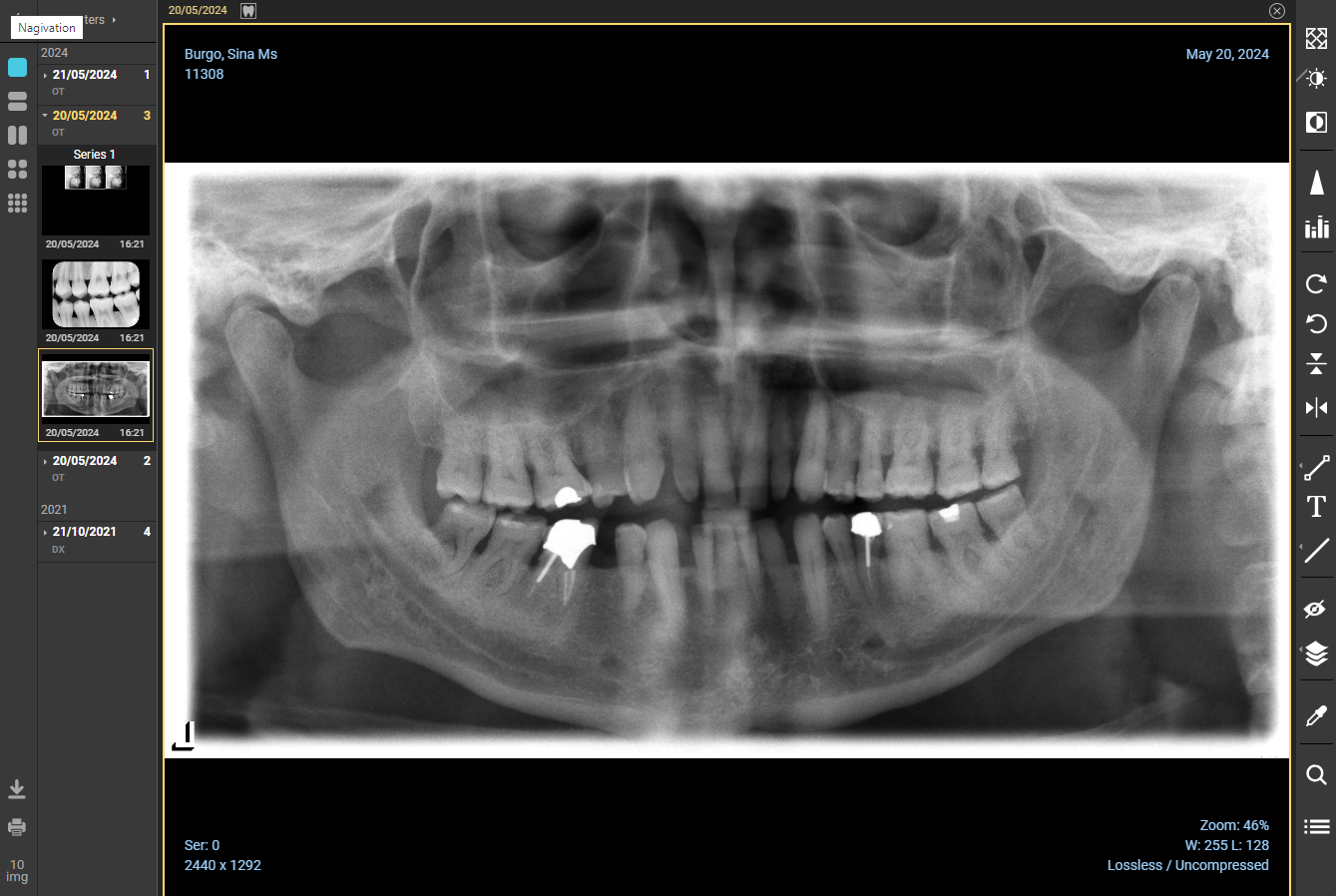

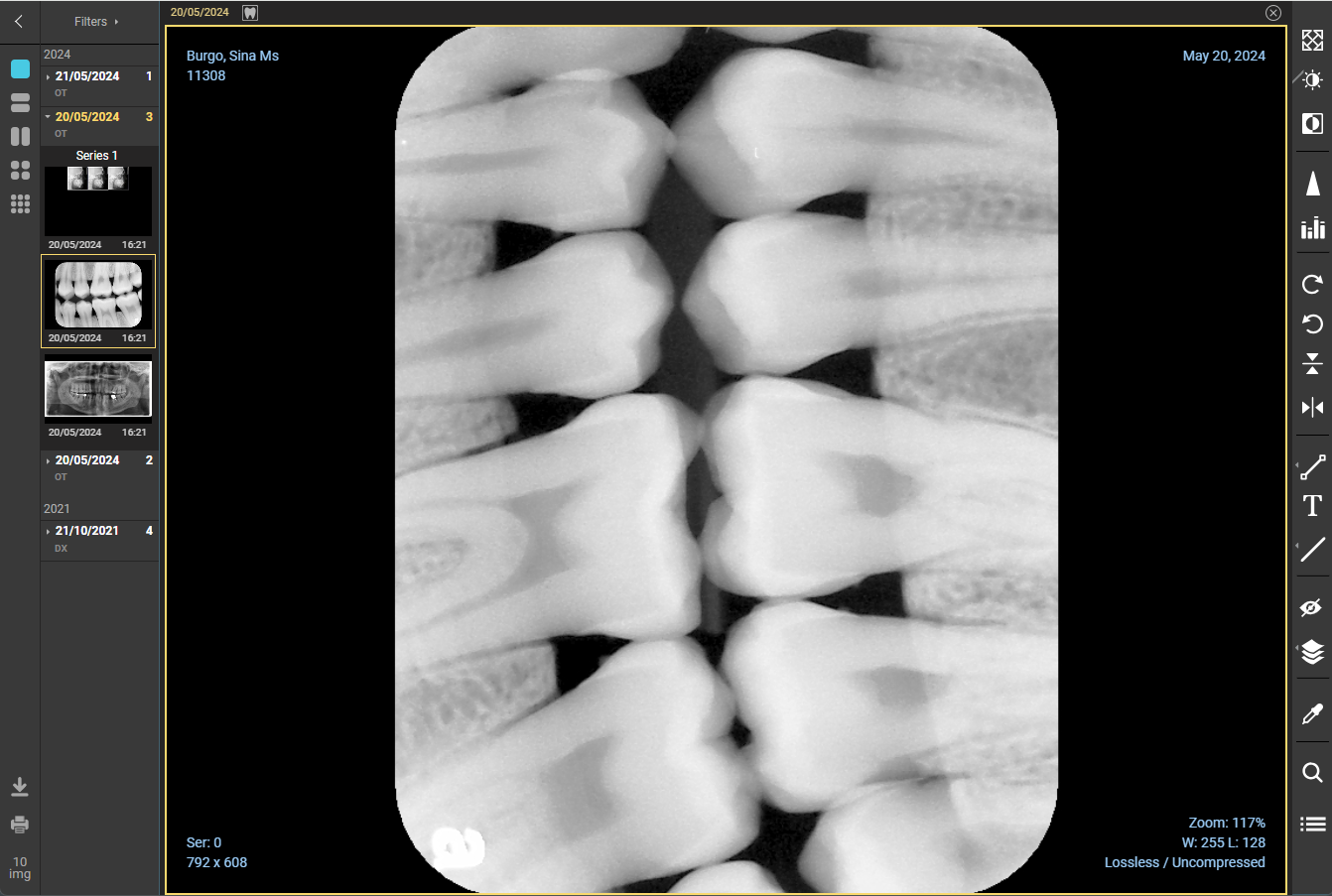

    3. When an image is opened, the following editor is displayed, the toolbar has been highlighted

      Only annotations can be saved for an image, see list below. Other changes to an image are not saved
  2. Auto Active Tools
    Three tools are active when an image is opened, before any clicks: Zoom, Pan and Levels. (Levels is the default tool)

    1. Zoom: Use the mouse wheel to zoom in or out of an image, this function is always active

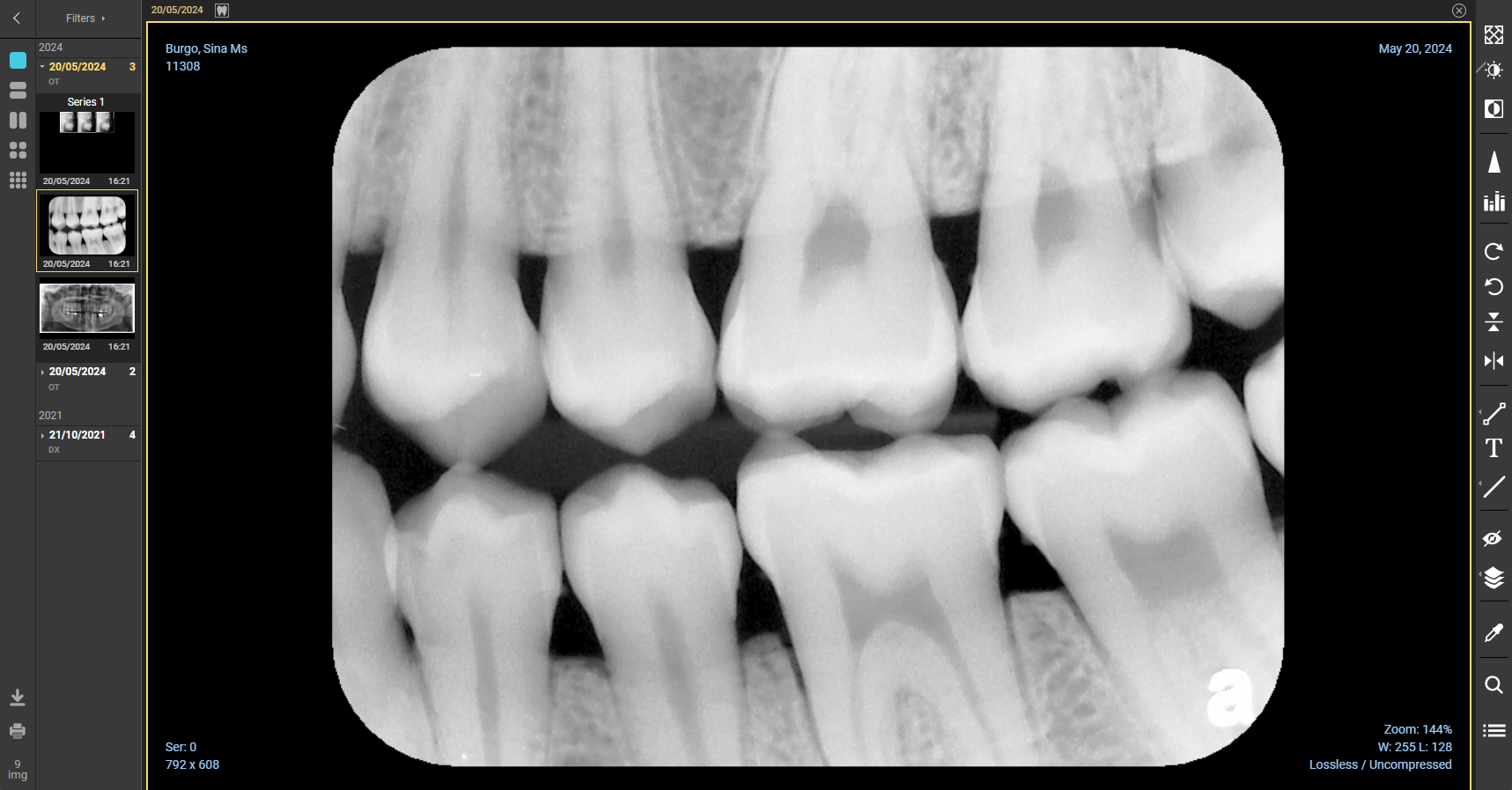

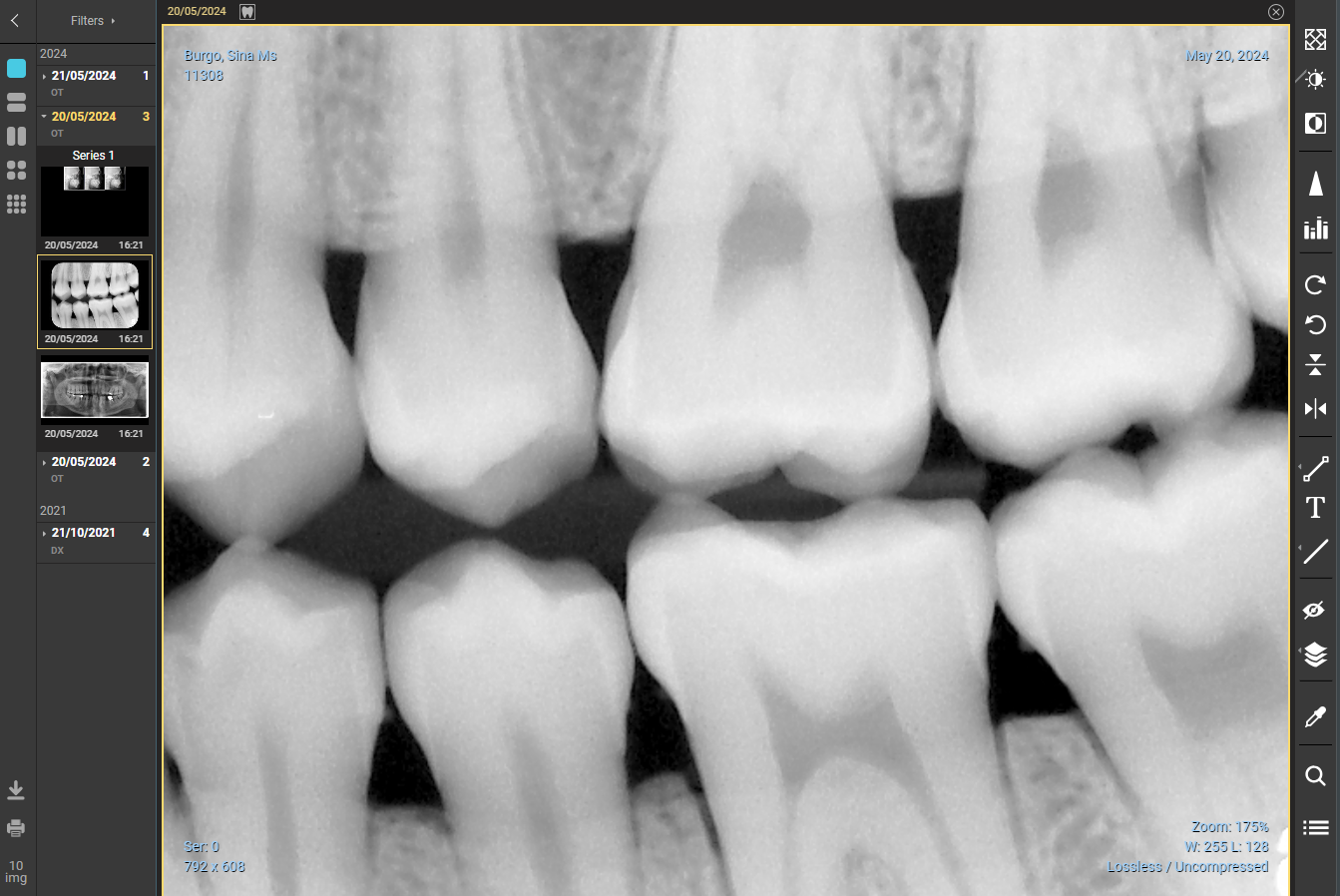

      Zoomed in

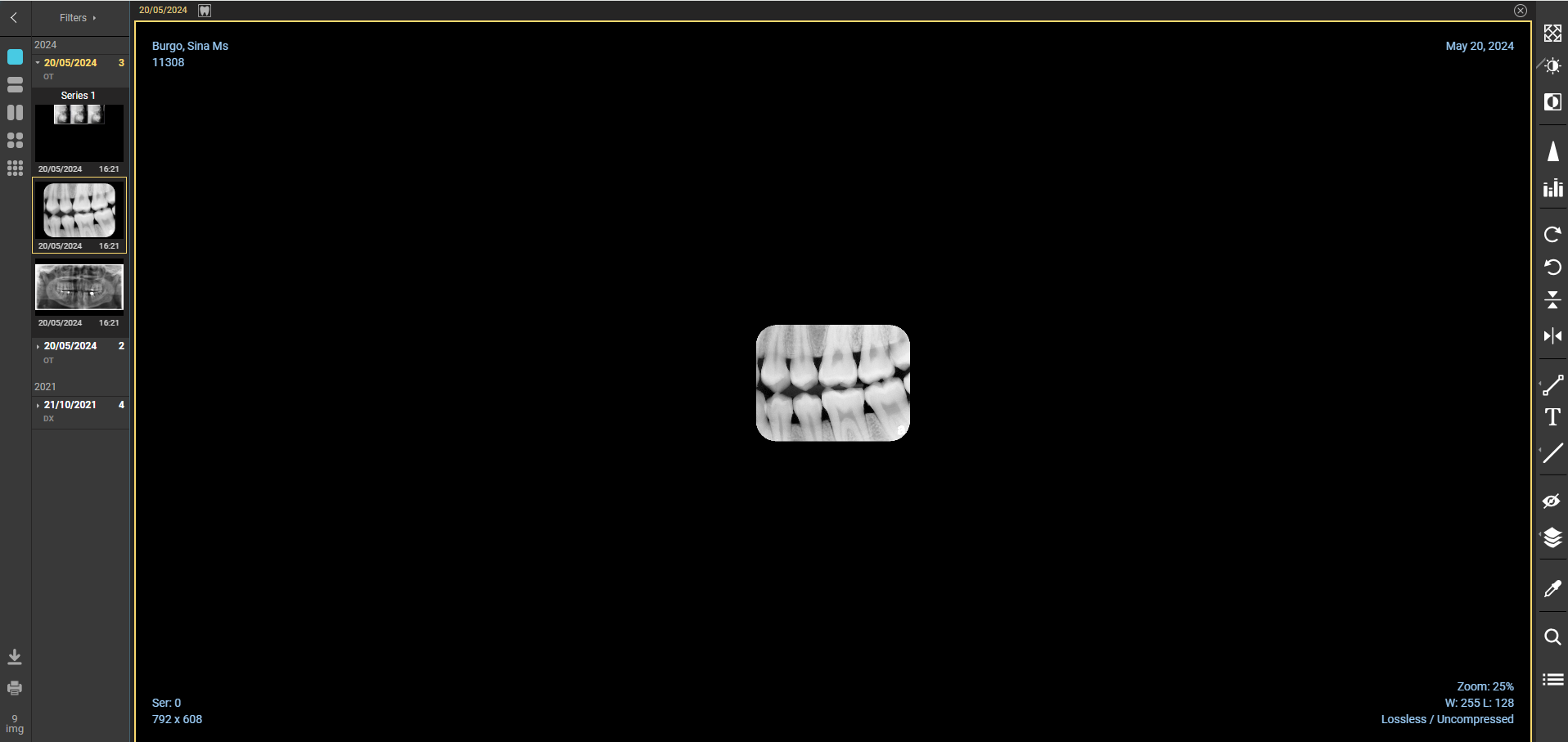

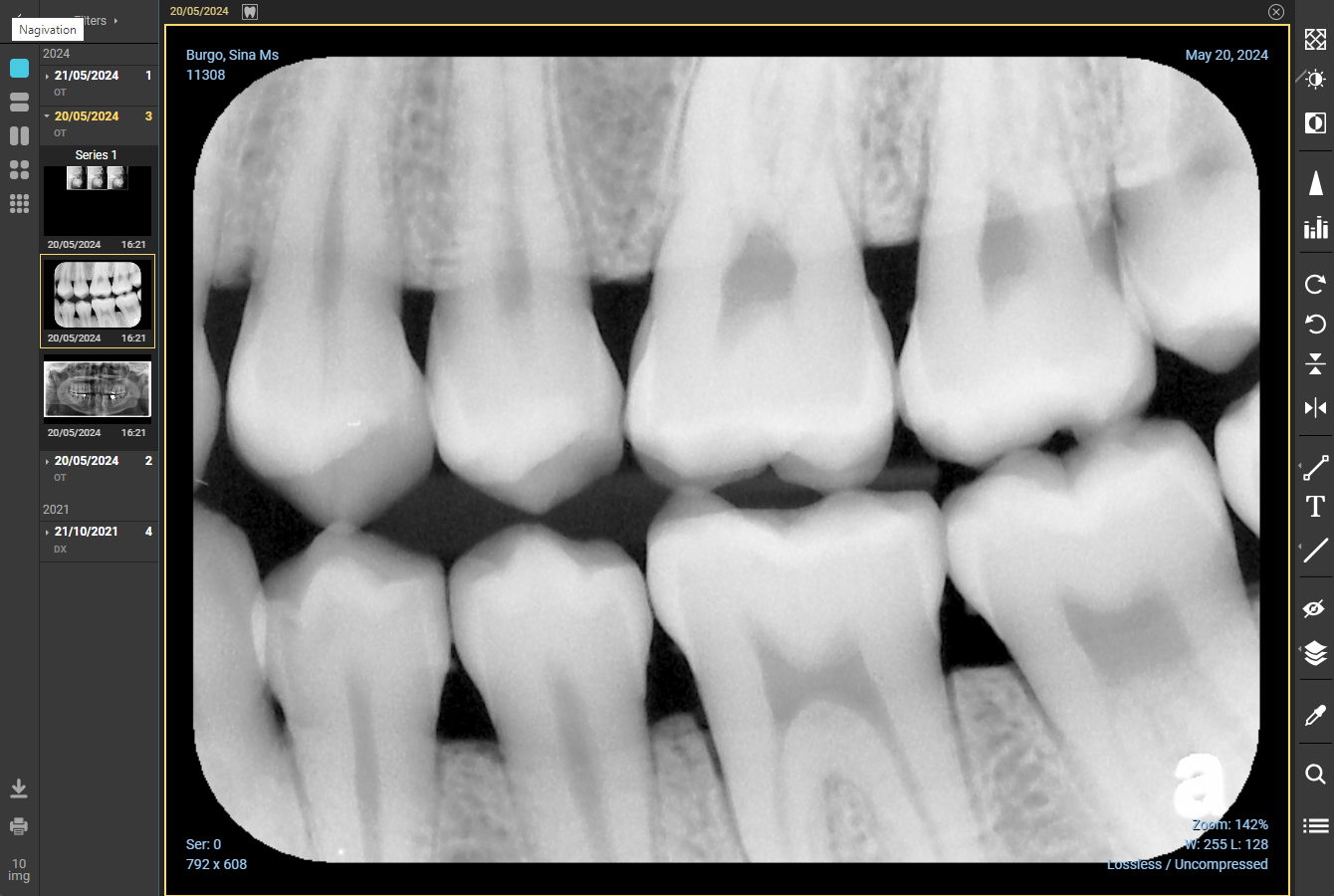

      Zoomed out

    2. Pan: “Pan” enables zoomed images to be navigated

      1. Click and hold the right mouse button down
      2. Drag the mouse, with the right mouse button down, to navigate the image
      3. Release mouse button when finished
        After Zooming

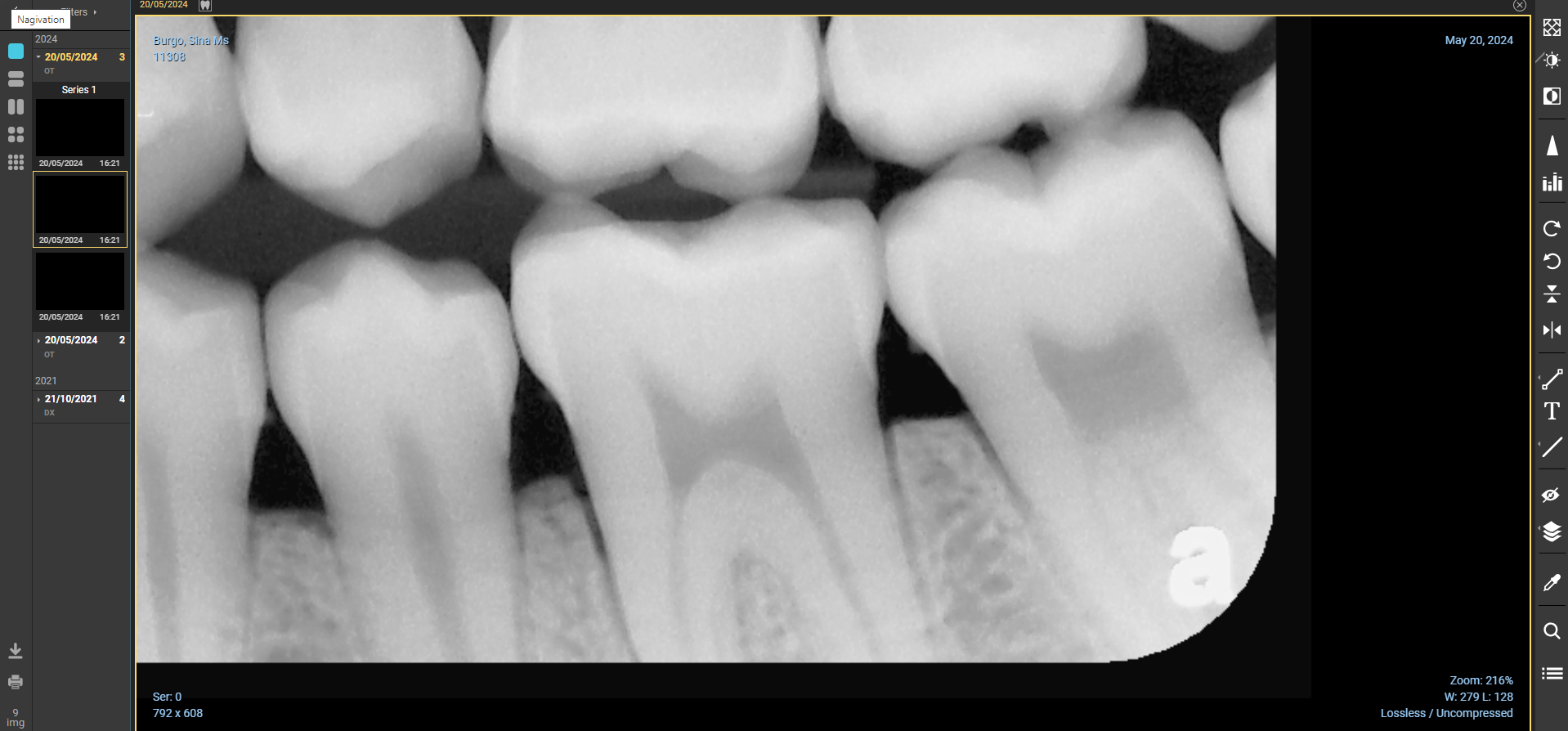

        After Panning
    3. mceclip7.png Levels (the default tool)
      Changes window Level and window Width values, i.e., Brightness and Contrast

      1. Click the tool

      2. Hold the left mouse button down and move the cursor up/down and/or left/right to adjust the changes window Level and window Width values

      3. The changes are reflected in the changes window Level and window Width shown in the bottom right of the display

      4. Deselect the tool

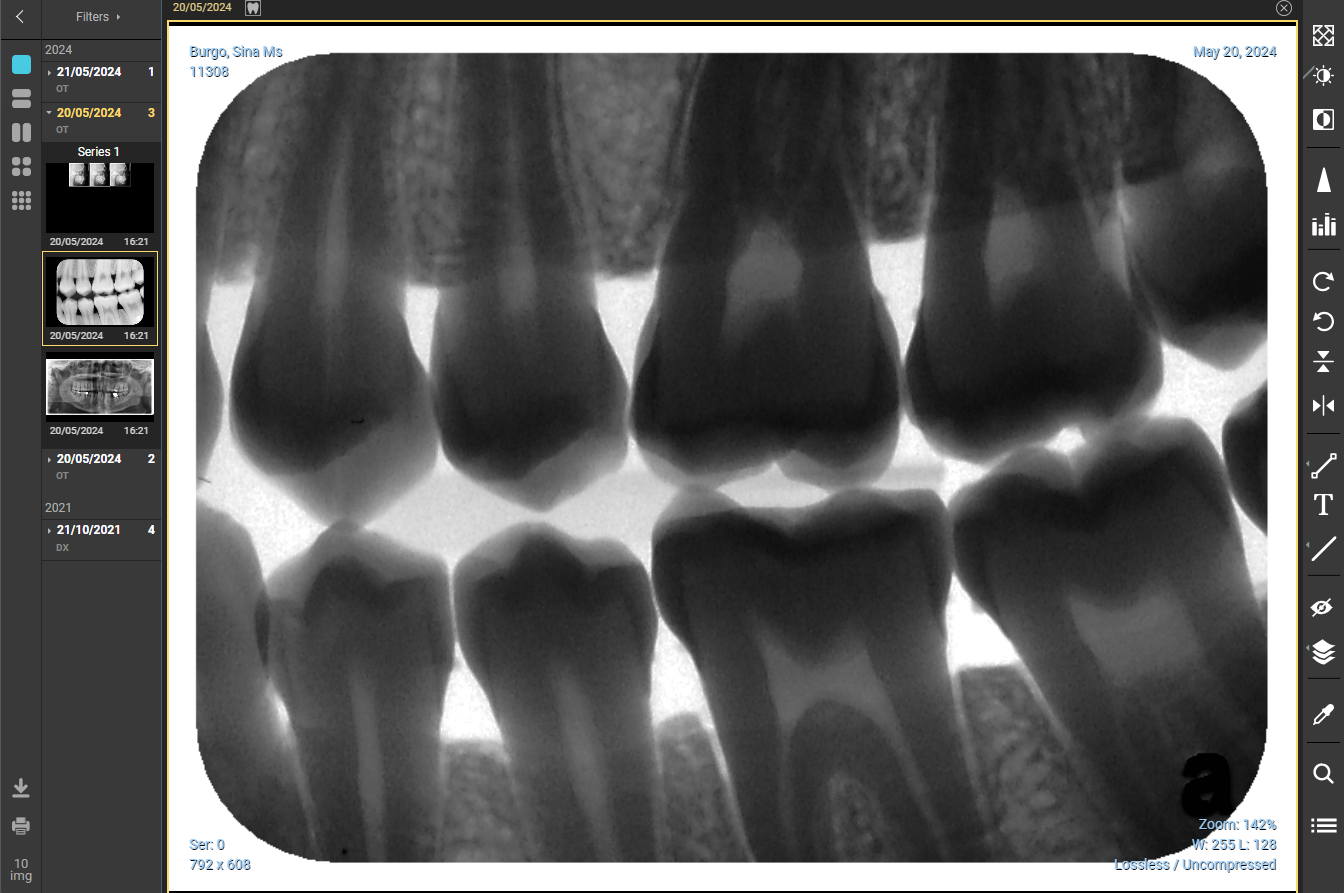

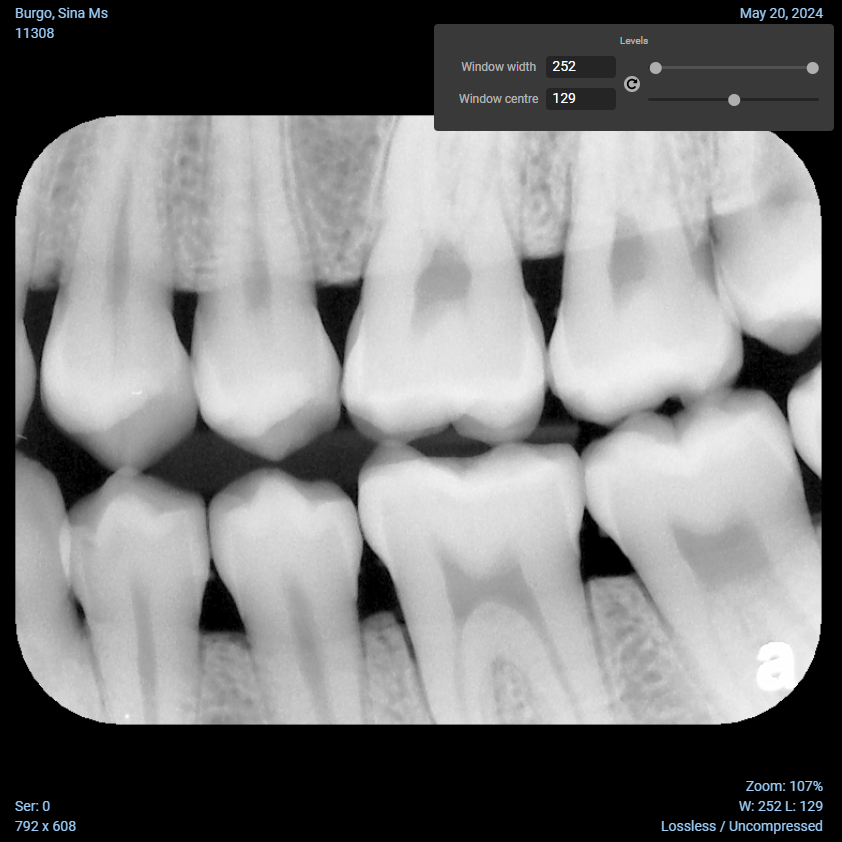

        Before

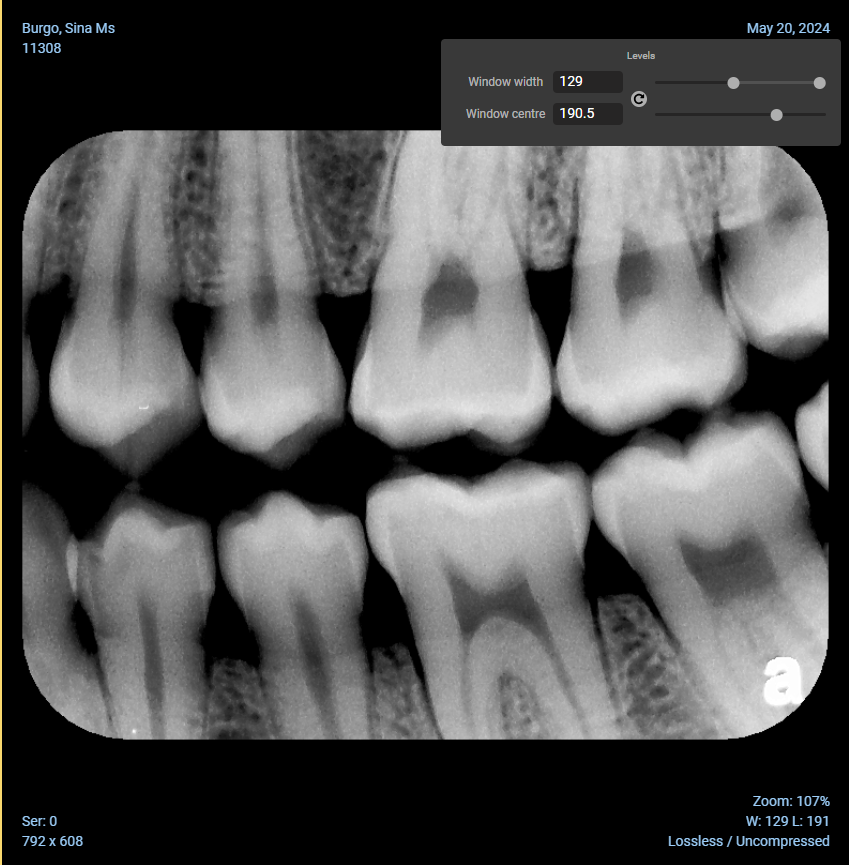

         After

  3. Other Tools found in the Toolbar
    An image can be manipulated by using the tools in the Toolbar

    1. mceclip6.png Fit the Frame: Click the Fit the Frame tool to immediately restore the whole image to be visible and fill the display window, i.e., as it was initially displayed

      Before


      After

    2. mceclip4.png Invert : Click the Invert tool to immediately invert or reverse the image, clicking again will revert the image to how it was previously

      Before

      After

    3. mceclip25.png Sharpening tool: Click here for full details
    4. mceclip28.png Equalise: Applies Equalisation to the image.
      There will be slider displayed to enable the level of Equalisation to be specified

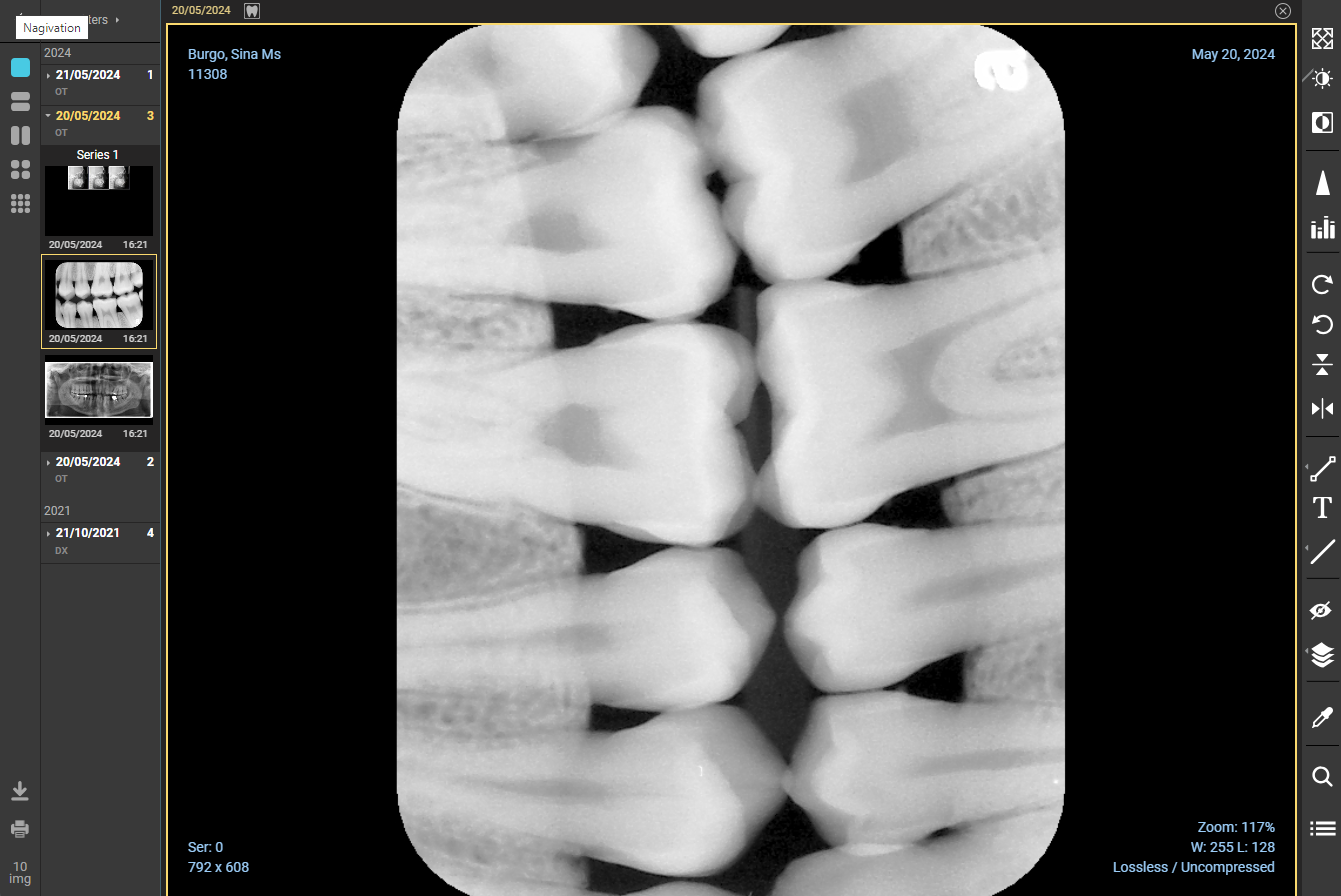

    5. mceclip7.png Rotate Right : Each click of the Rotate Right tool will immediately rotate the image 90 degrees to the right (clockwise)

      Before

      After

    6. mceclip10.png Rotate Left: Each click of the Rotate Left tool will immediately rotate the image 90 degrees to the left (anti-clockwise)

      Before


      After

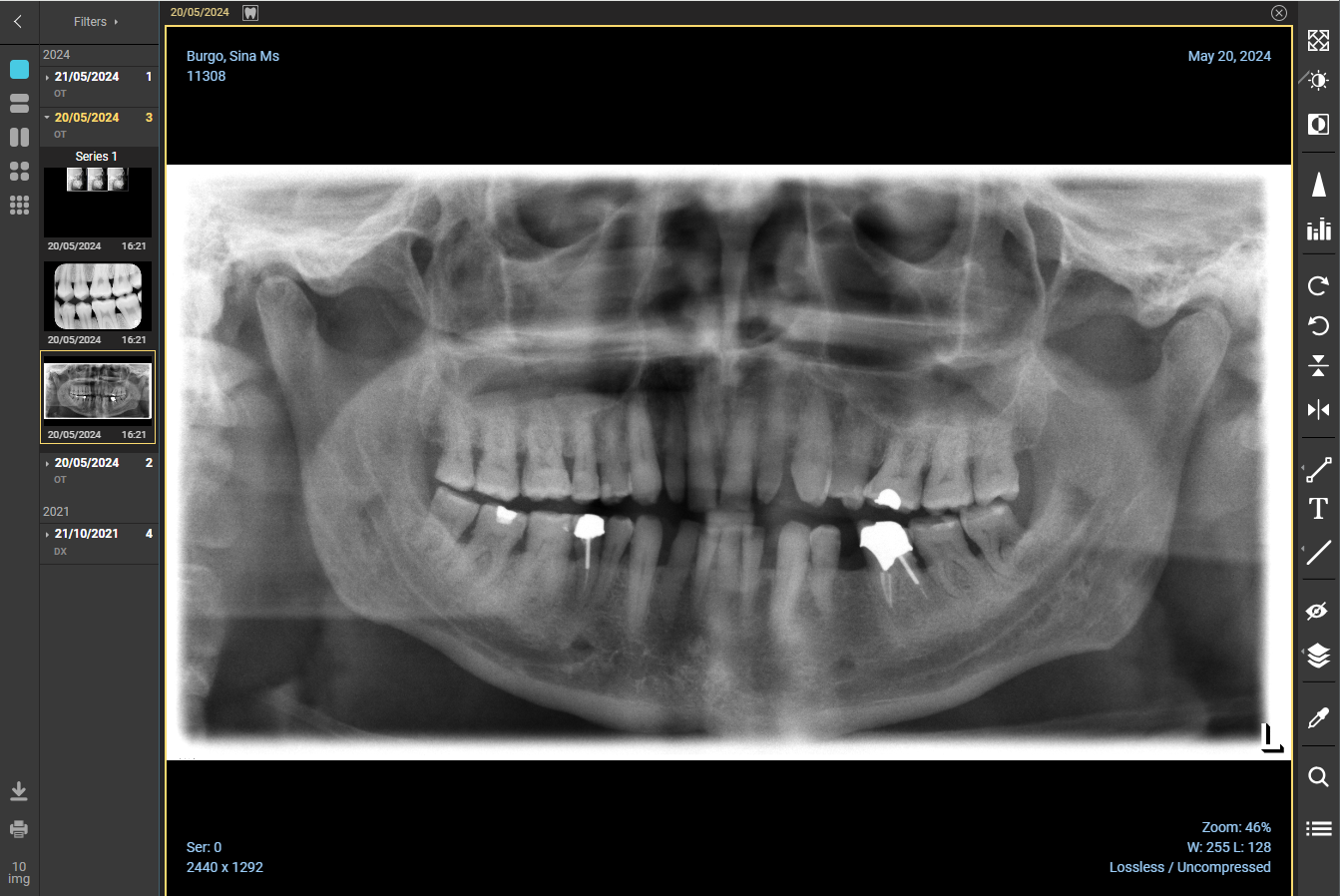

    7. mceclip13.png Flip Horizontally: Each click of the Flip Horizontal tool will immediately horizontally flip (mirror image) the image

      Before


      After
    8. mceclip16.png Flip Vertically: Each click of the Flip Vertical tool will immediately vertically flip (mirror image) the image
      Before


      After

    9. mceclip22.png Measurement Menu  Click here for full details on each measurement

    10. mceclip23.png Text : Click here for full details

    11. mceclip27.png Draw menu: Click here for full details

    12. mceclip30.png Reset: The Reset tool will restore the image to how it opened in this session, i.e., remove all changes made in this session

    13. mceclip31.png Filter: The Filter tool allows pre-defined filters to be applied to an image and/or create new filters. Click here for full details

    14. mceclip32.png Probe: Displays the tissue density in Hounsfield Units
      1. Click the tool to enable it
      2. Move the mouse over the image to the Hounsfield Unit at the selected area
      3. Click the tool to deselect it
      4. See https://radiopaedia.org/articles/hounsfield-unit for Hounsfield Unit information

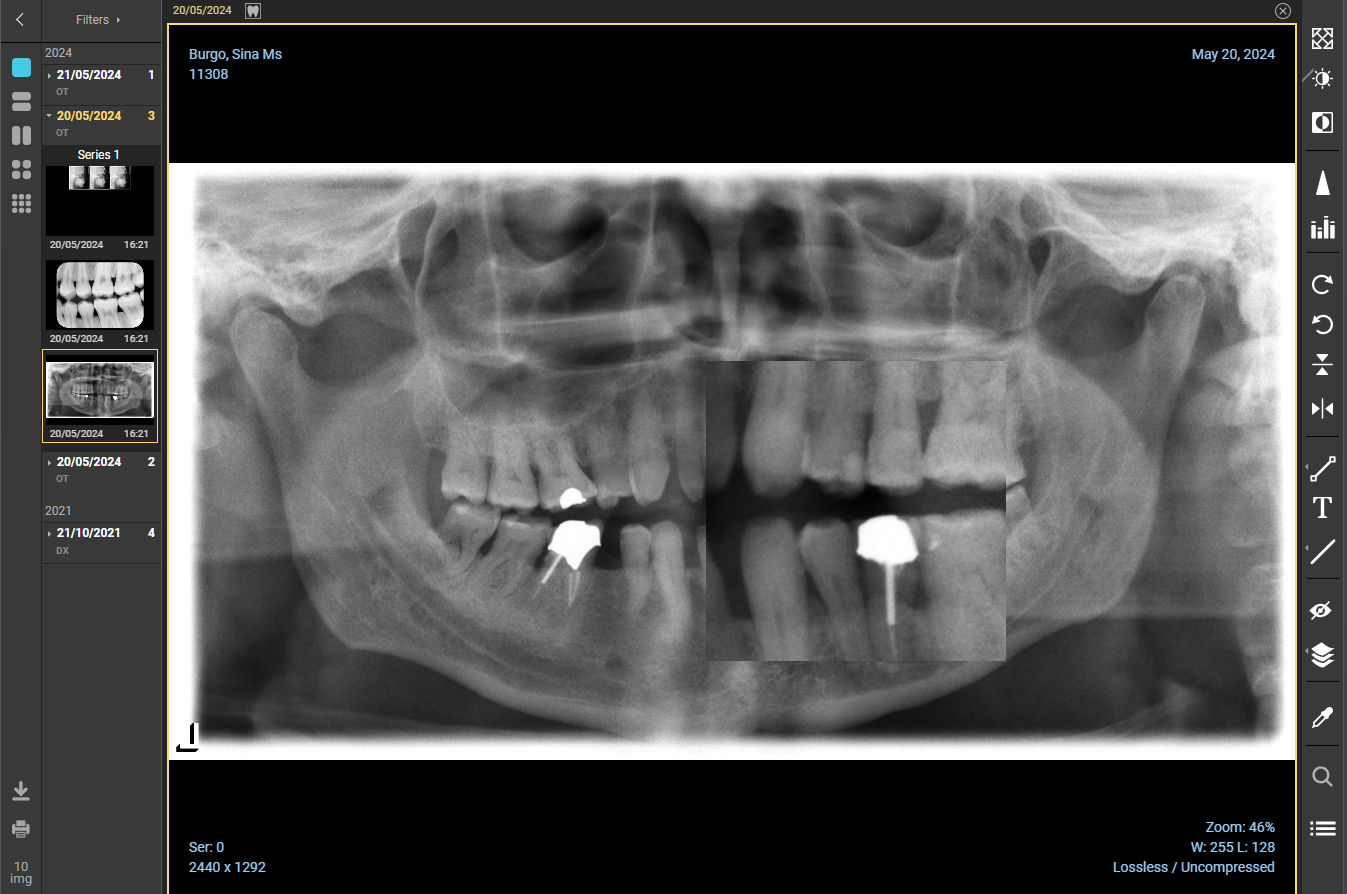

    15. mceclip35.png Flashlight: Enables zoom mode to just a small part of the image as if it’s spotted by a flashlight
      1. Click and hold the left mouse button and navigate over the image to display a magnified view
      2. When finished release the left mouse button

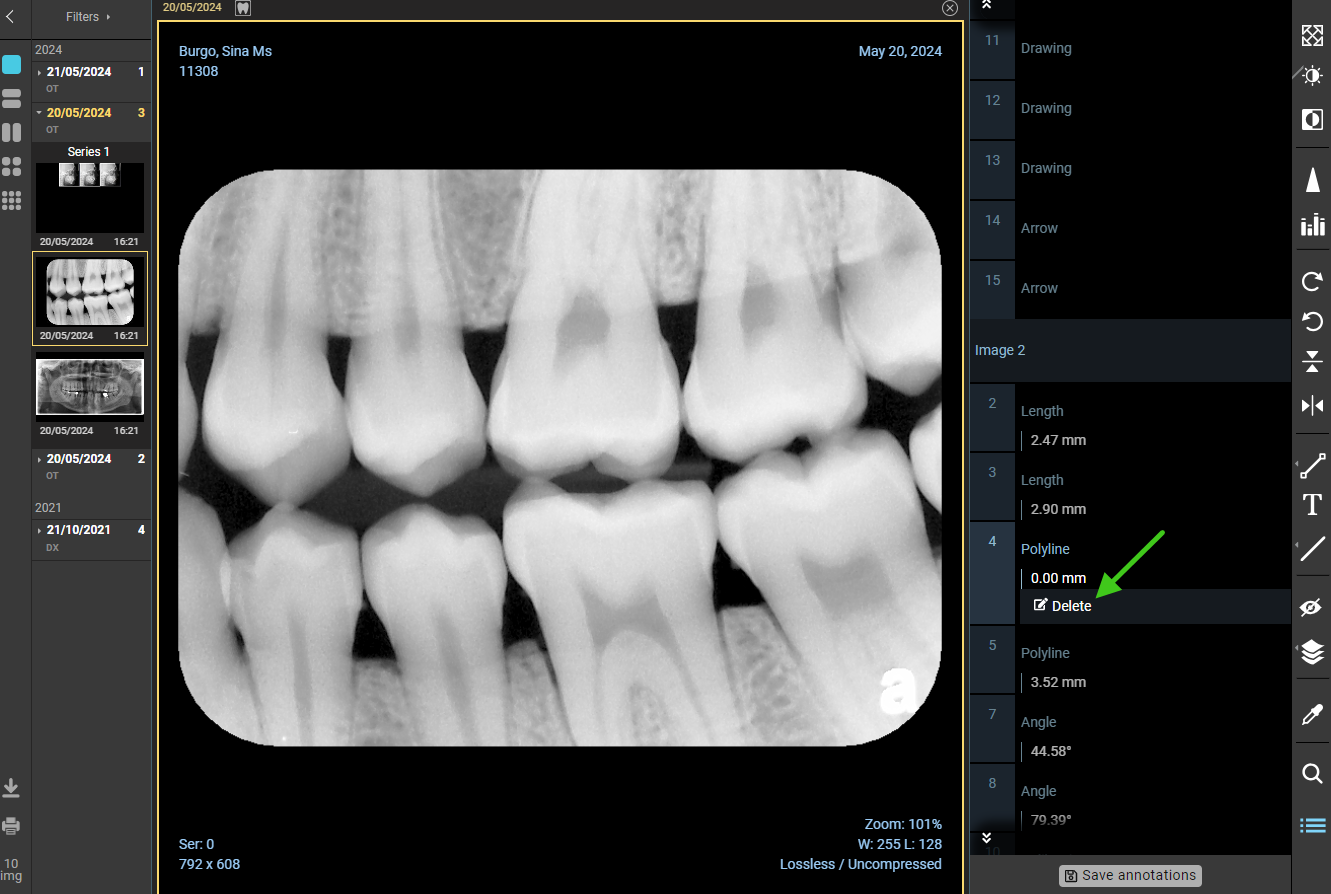

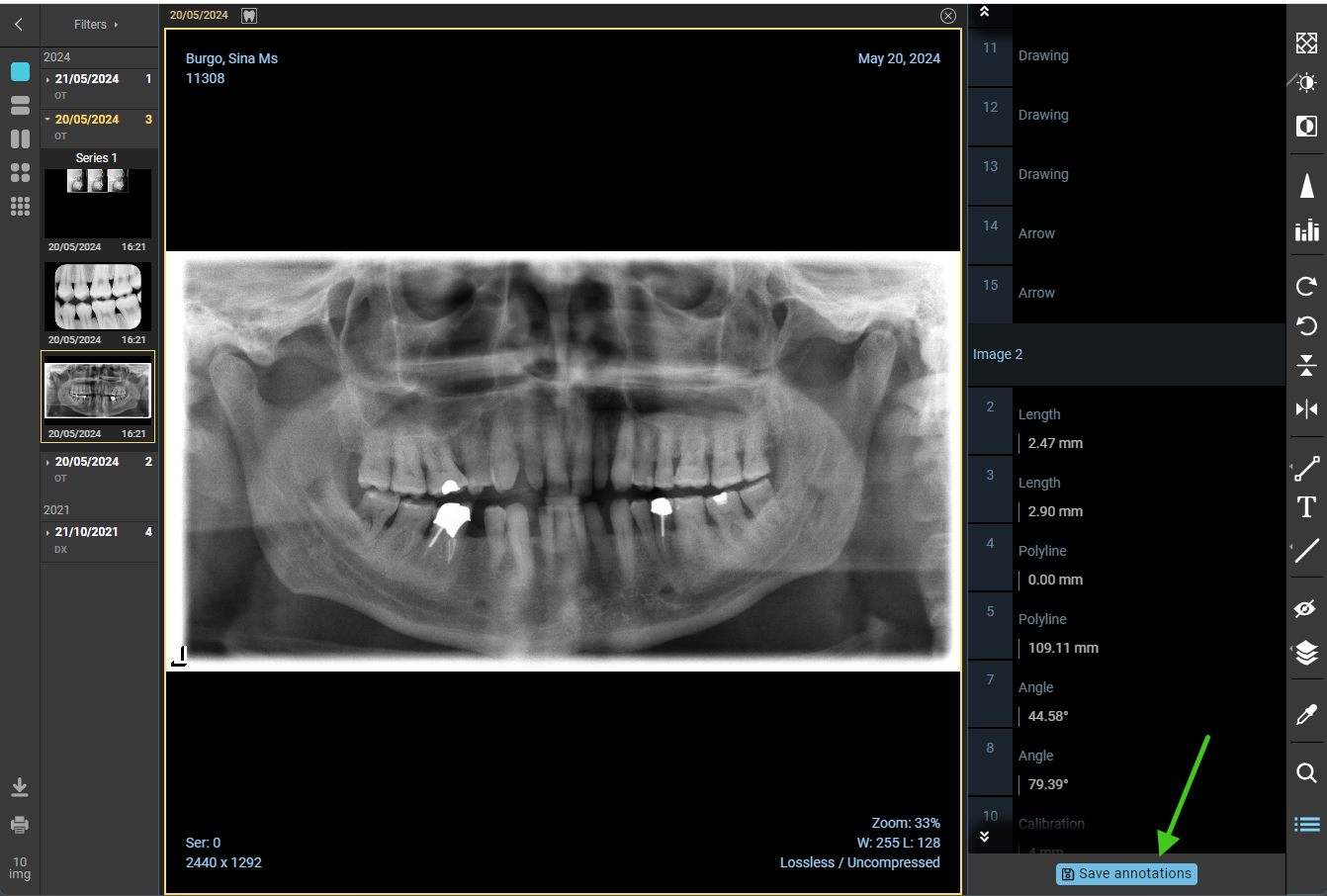

    16. mceclip36.png List: This is multi-function tool

      1. Will display all annotations created for all images for this patient

      2. Click “Save measurements to save any unsaved annotations, a confirmation message will appear

      3. Clicking an annotation gives the option to delete it

      4. Clicking an annotation on another image will open that image, after clicking annotation for Image 2
